For the development in the area of seating, we offer the following services:
- General design of individual seats and seating systems
Backrest stiffness
General structural stiffness
Robustness
Component optimization
Pendulum impact
Misuse
- Design of luggage separation nets including attachments
- Design of seat mounts and belt mounts in the body

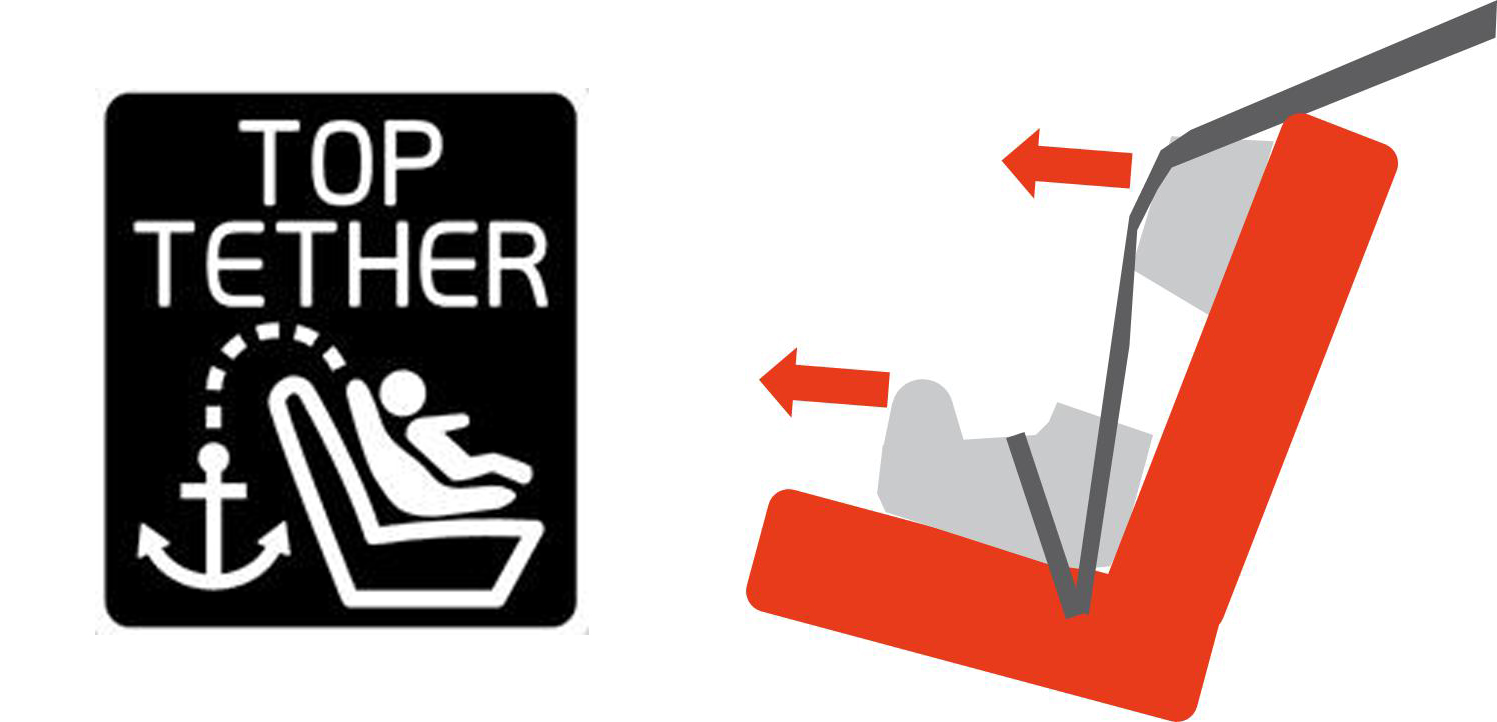

- Load cases front crash, rear crash, load protection, belt tension, top tether, ADR34 and others:
ECE-R 14 seat belt anchorages and child seat anchorages
ECE-R 17 resistance of seats/anchorages
ECE-R 21 interior fittings
ECE-R 25 head restraints integrated into vehicle seats
FMVSS 210 seat belt anchorages
FMVSS 225 child seat anchorages
ADR 5 seat belt anchorages
ADR 34/02 child seat anchorages
FMVSS TP-301R-02 fuel system integrity (rear impact)
Additionally, the internal load specifications and other customer requirements will of course be taken into account in the seat calculations.
- Script development for seat adjustment,
Python scripts for setting seat positions
- Automated seat adjustment (via pre-processor)
ANSA (BMW ProDSiG)
VE (VW ProDSiG)
- Integration of simulation models into SDM systems (Loco, CB2)
- Solvers: VPS, LS-Dyna
